Product Description

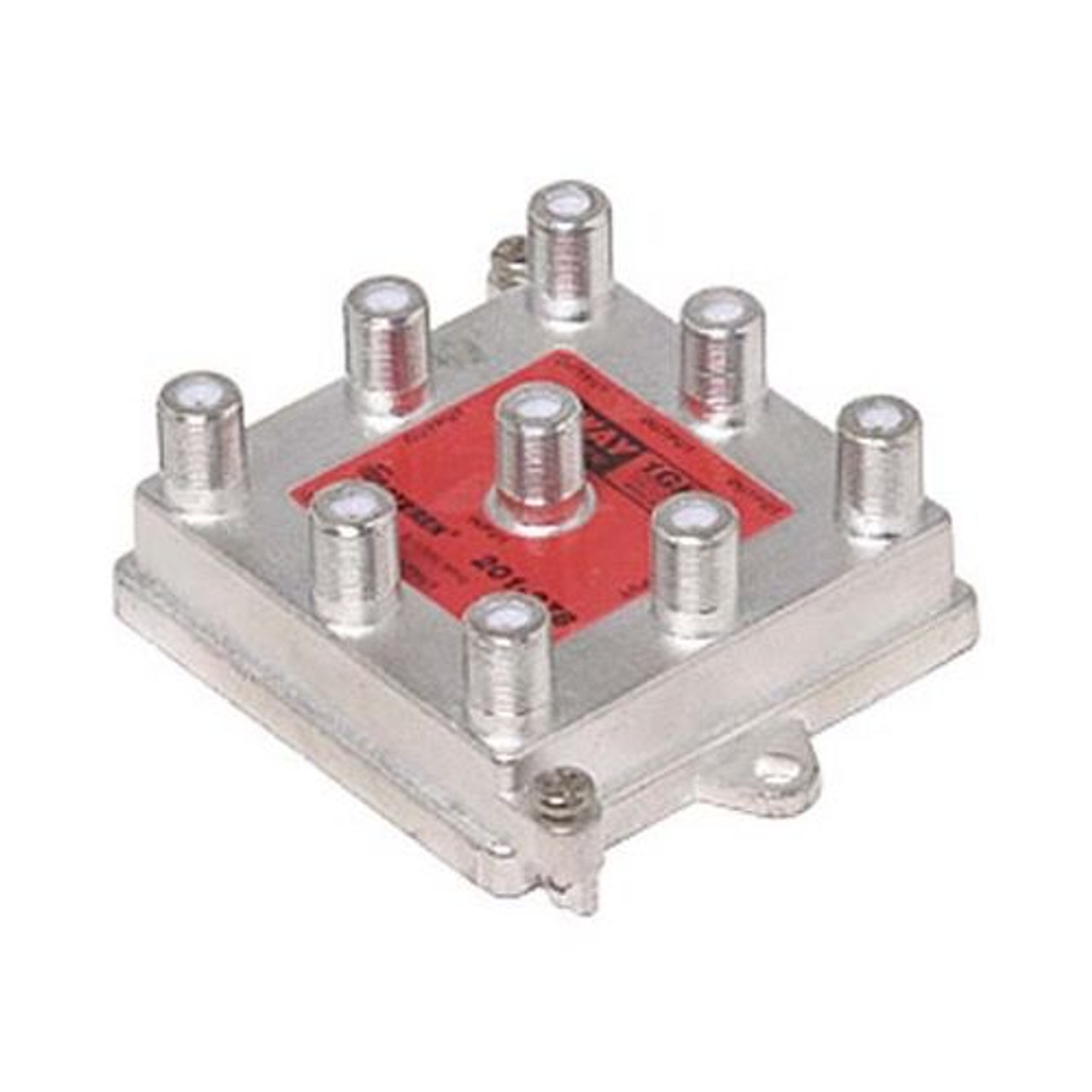

Steren 201-278 8-Way 1 GHz 130 dB Vertical Splitter Signal Digital 8 Port Output DC Power Block All Port Highest Isolation Performance Vertical Video UHF/VHF TV Antenna Splitter Combiner, 5-1000 MHz, Part # 201278
1GHz 130dB Vertical High Isolation Splitter
5-1000 MHz 75 ohm Highest Isolation F-Splitters. Vertical port design allows close mounting in lock boxes for easy access of cable connections.
Specifications:
- Capacitor-Coupled DC Power Blocked All Ports
- Soldered-Back Cover 130dB min. RFI Shielding
- High-Performance Printed-Board Circuitry
- >-100dB Low Intermodulation Distortion
- Anti-Corrosion Silver-Plated Zinc-Alloy Cast Housing
- 3/8 Precision Machined F-Connector Threads
- Mounting Tabs with Screws Cast-In Ground Block
- 1 centered F-ports accommodate security tools
- SCTE Compliant SC IPS SP 202, 203; SC IPS TP 406, 409; SCTE 29, 48, 04
- Supplied with Protective F-Port Plastic Caps
- Insertion Loss 11.4 dB max.
- Port-Port Isolation 31dB min.
- Input Return Loss 27dB min.
