Product Description

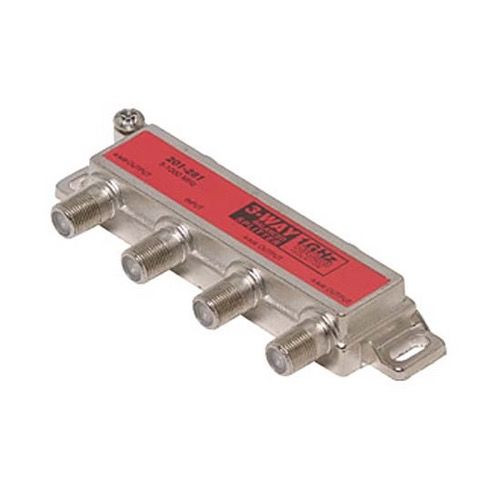

Steren 201-221 3-Way Balanced 1 GHz 130 Splitter dB F-Isolation 6.5 dB Max Insertion Loss Port - Port 29 dB Min Isolation 5-1000 MHz Solder Back Cover High Performance Printed Circuit Board, Part # 201221
3 Way Balanced 1GHz High Isolation F-Splitter
5-1000MHz 75ohm Highest Isolation F-Splitters. Horizontal One-Sided Input and Output Ports. One-sided port design allows close mounting in lock-boxes for easy access of cable connections. Tongue-and-Groove Housing. Fully Water Resistant. Soldered-Back Cover 130dB min. EMI-RFI Shielding.
Specifications:
- 3 Way 1 GHz 130 dB F-Splitter
- Capacitor-Coupled DC Power Blocked All Ports
- High-Performance Printed-Board Circuitry
- >-100dB Low Intermodulation Distortion
- Mounting Tabs with Screws
- Cast-In Ground Block
- Anti-Corrosion Nickel-Plated Zinc-Alloy Cast Housing
- 3/8 Precision Machined F-Port Threads
- 1 centered F-ports accommodate security tools
- SCTE Compliant SC IPS SP 202, 203; SC IPS TP 406, 409; SCTE 29, 48, 04
- Supplied with protective F-port plastic caps
- Insertion Loss 6.5dB max.
- Port-Port Isolation 29dB min.
- Input Return Loss 25dB min.
