Product Description
Open House H511HHR Channel Plus Linear Video Amplifier Combiner Modulator High Headroom Antenna Video Module Signal Modulator Off-Air Aerial Distribution Systems, Part # H838-HHR | Open Box Item

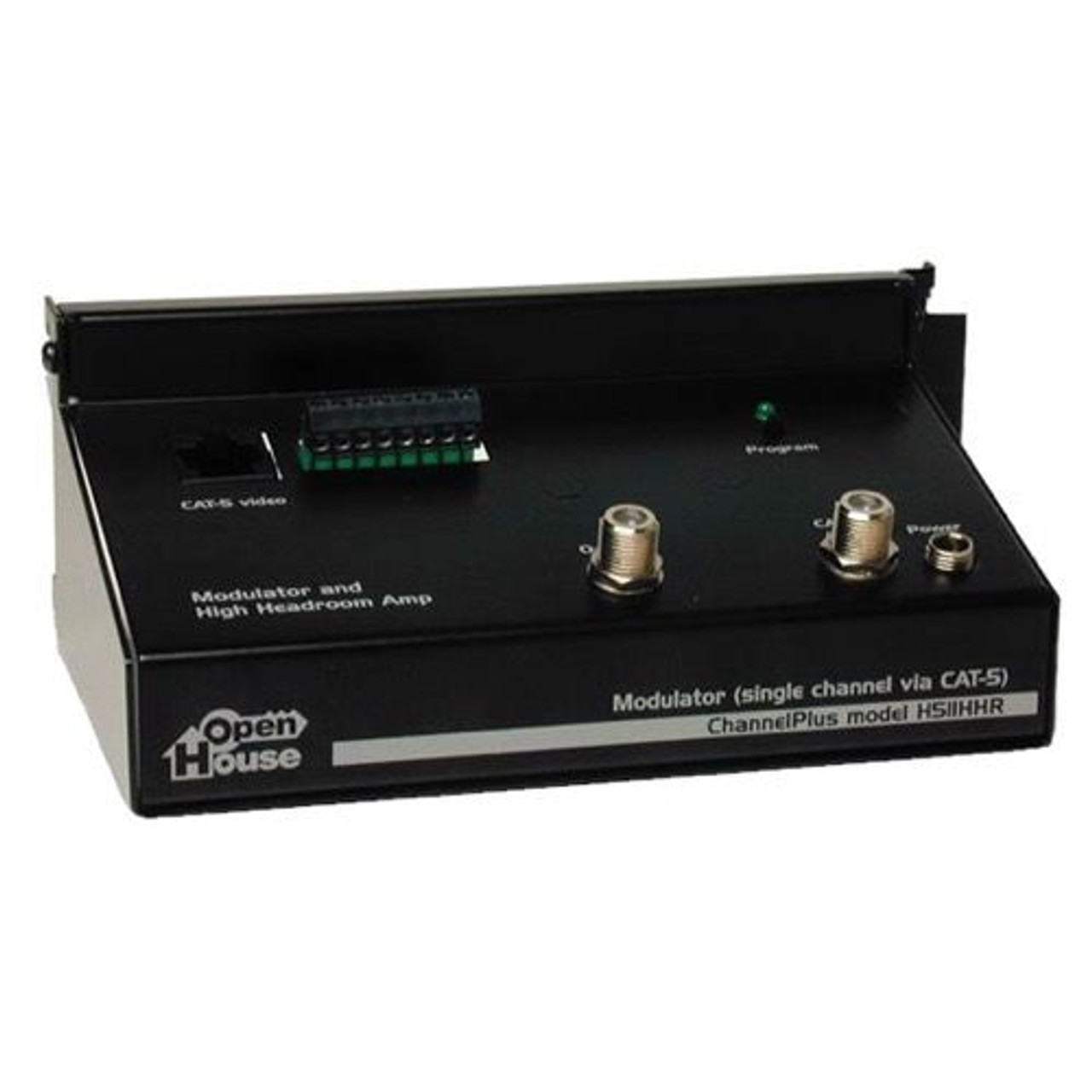

Open House H511HHR High Headroom Combination Modulator
The Model H511HHR High-headroom Modulator, Amplifier, Combiner is a combination modulator, amplifier and combiner. The H511HHR creates a TV channel for a camera or other video device. Connect one of the Cat-5 cameras or any video device via the H110 wall plate. The H511HHR is an all-in-one module that powers, injects, and distributes the created channel along with antenna or CATV throughout the house using the existing coax.
Specifications:
- RJ-45 Input port or screw down terminals
- Combination modulator, high headroom amplifier & combiner
- Channel range: CATV 65-125 & UHF 14-64 (channels 95-99 excluded)
- Push button channel programming
- FCC part 15 compliant
- Five enclosure grid spaces
- 6.25" x 3.25" x 2.25"
- Open Box Item
