Product Description

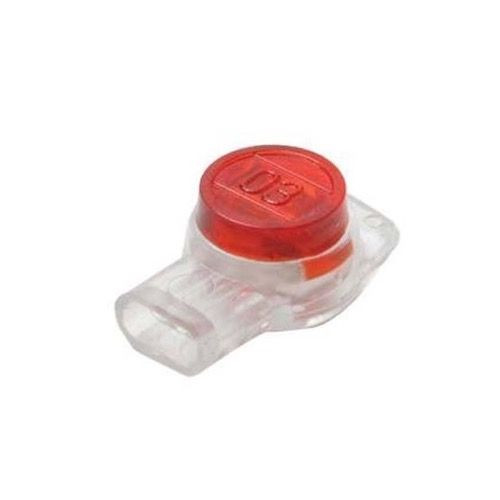

Eagle UR-3 Butt Connector Splice 19-26 AWG Red 3-Wire IDC Telephone Data Crimp Displacement Connector Red Button Scotchlok 3M Type Telephone Crimp 19-26 AWG UG Modular Data Squeeze Connectors, Sold as Single
Scotchlok UR Connectors ("Red buttons"), are used for general butt splicing with 2 or 3 wires 19-26 AWG air core with maximum insulation O.D. of .066". This product is designed for butt splicing voice and data communication cables with solid copper single-conductor wire. "U" contact in the button clamps down on the wire, strips the insulation, and grips the conductors in a gas-tight connection. The connectors are filled with corrosion-resistant sealant at the factory to protect the connection against air and moisture. Product manufacturer may vary. Sold as Singles.
Splicing Instructions:
- Hold wire ends parallel for 1" and clip off even. Do not strip insulation.
- Hold connector with button side down and insert wires all the way into ports.
- Crimp the button onto the wires using a 3M Scotchlok hand tool.
