Product Description

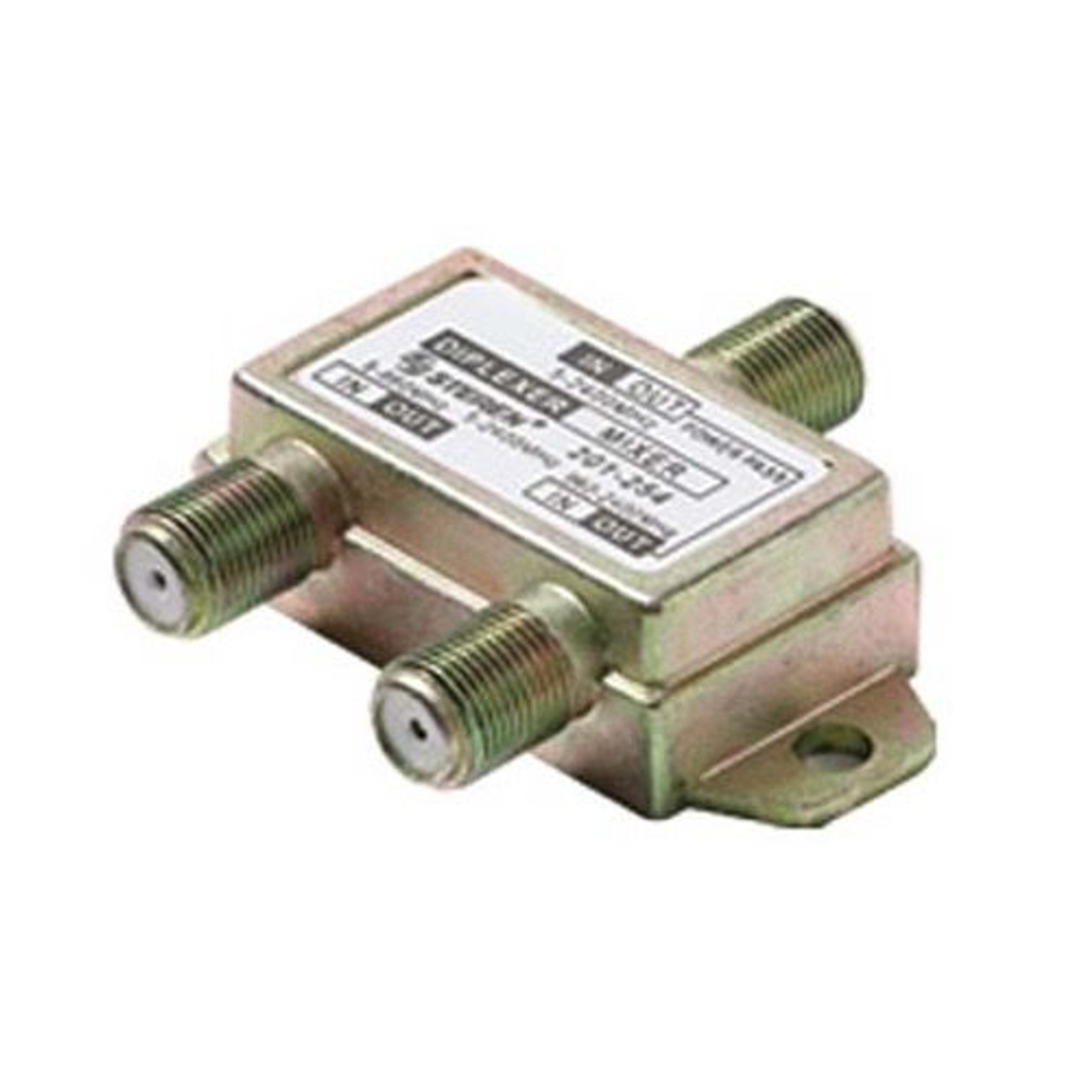

Eagle Satellite Diplexer Splitter Combiner 2GHz 1 Port DC Passive Combines Offair TV and Satellite
This mini diplexer has been designed to either combine or separate satellite and off-air/CATV signals. Nickel plated Zinc cast housing.
Specifications:
- Satellite Diplexer Signal Mixer Combiner
- Frequency Range: 5 - 2400 MHz
- High Performance SMD Printed Board Circuitry
- 90 dB Min RFI Shielding
- One Port DC Power Passing (500 mA Max)
- Insertion Loss: VHF/UHF 0.5 dB / Satellite 1.5 dB
- Isolation: VHF 25 dB / UHF 20 dB / Satellite 23 dB
- Return Loss: VHF18 dB / UHF 10 dB / Satellite 12 dB
