Product Description
Eagle 48 Port CAT5e Patch Panel RJ45 110 Type Rack Mount Commercial Grade Voice Data 19" Inch RJ-45 110-IDC Punch Down Panel UL 22-26 AWG Strain Relief System CAT-5e Modular Termination Distribution Module Lan Hub

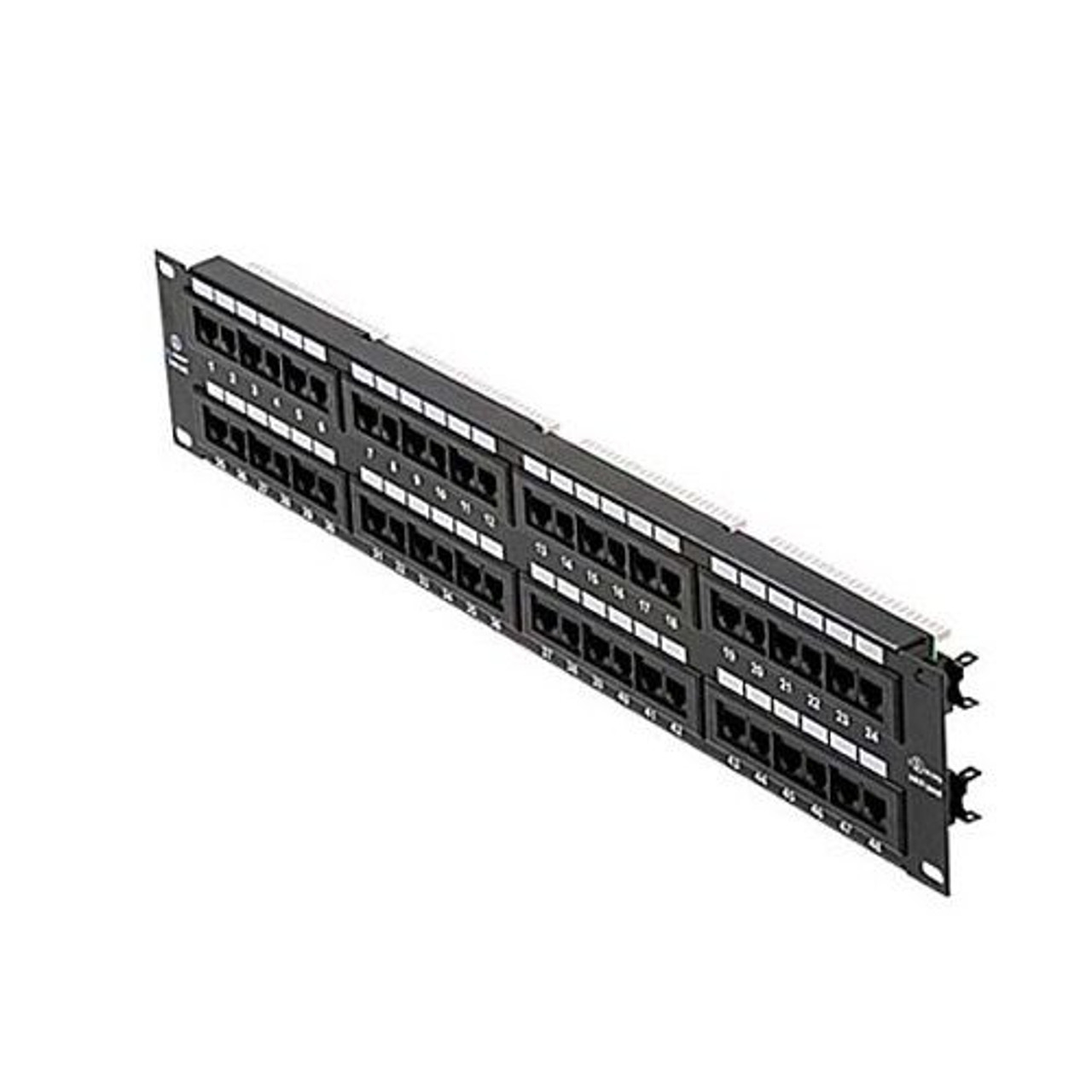

48 Port 110-IDC CAT5E Patch Panel
48 Port 110-IDC CAT5E Patch Panel
Specifications:
- Category-5e UL Verified and Listed Patch Panels
- High-Reliability Printed-Circuit Board Design
- 110-Termination 22 - 26 AWG Tin-Lead Contact
- UL94V-0 Black ABS Modular Jack Banks
- Beryllium-Copper Modular Jack Contacts
- 50 Hard-Gold Plating over 50-100 Nickel
- Dual Color-Coded 568 A/B Wiring Diagrams
- High-Grade 16-Gauge Thick Rolled-Edge Panel
- Black Electrostatic Powder-Coated Steel
- Numeric-Stencilled Port ID Labels
- Conforms to FCC Part 68.5 requirements
- EIA/TIA T568 (AT&T-258A) Standard
- High Speed - 350 MHz
- 1 x EIA Units 19"(W) x 4"(H) x 1 1/4"(D)
